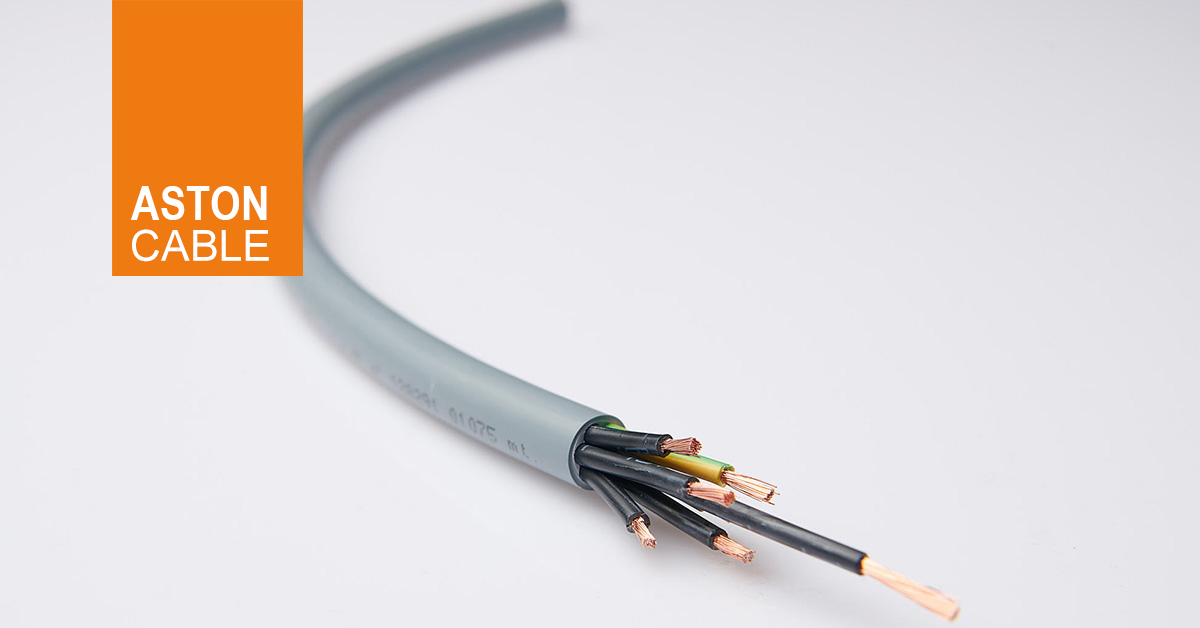

Introducing Aston Cable's YY LSZH Control Flexible Copper Cable. This superior control cable has been crafted with meticulous attention to flexibility and durability, making for a must-have in today's industrial sector. Our YY Cable is a versatile masterpiece with class 5 flexible annealed plain copper conductors, PVC insulation, and an elegant grey PVC sheath. Our YY cable is designed to be used in fixed installations or flexible use in settings that experience light mechanical stress. Engineered to function effectively both in dry and moist areas, our cable can also be used outdoors when mechanically protected. At the heart of this product is its wide applicability in various sectors. We supply the YY Cable for production line installations, conveyor systems, machine tool manufacturing, and air conditioning systems amongst others. The Aston Cable's YY Control Cable offers a PVC insulated flexible control cable with a grey sheath made from polyvinyl chloride. This product is primarily utilized in industrial applications to connect electrical equipment and distribute power. Available in 2C0.75YY, 2C1.0YY, 2C1.5YY, 2C2.5YY, 2C4.0YY and 2C6.0YY sizes with a MOQ of 30KM, each cable adheres to the highest quality standards. Advantages of choosing Aston Cable as your supplier and manufacturer include our strict adherence to stringent quality control measures. We are focused on guaranteeing that all our products, like the YY Cable, satisfy the most demanding industry specifications. We offer extensive customer service and technical advice to ensure your equipment's efficient functioning with our product. Aston Cable's YY LSZH Control Flexible Copper Cable is your ultimate solution for flexible, high performance control cables. Trust Aston Cable for reliable, resilient, and customizable industrial control cable solutions.

· Product Details

Place of Origin:	China
Brand Name:	ASTON or OEM
Certification:	SGS CE ROHS ISO9001
Coaxial Cable Daily Output:	200KM



· Payment & Shipping

· Short Description

- YY Control is a flexible mulit-core cable with class 5 flexible annealed plain copper conductors, PVC insulation, and a grey PVC sheath. YY Cable is used in fixed installations or flexible use in conditions with light mechanical stress. It can be used in dry and moist area’s including outdoors when mechanically protected. YY is widely used on production lines, conveyor systems, machine tool manufacturing and air conditioning systems.

Conductor: Class 5 flexible annealed plain copper conductor

Number of Conductors: 2/3/4/5/7

Insulation:

YY PVC: PVC (Polyvinyl Chloride)

YY LS0H: XPLE (Cross-Linked Polyethylene)

Seath:

YY PVC: PVC (Polyvinyl Chloride)

YY LS0H: LSZH

- MOQ：30KM

---

· Specification





· Quick detail

YY cable is a PVC insulated flexible control cable which has a grey sheath made from polyvinyl chloride. YY is primarily used in industrial applications for connecting electrical equipment and to distribute power.



· Description

Size and Dimensions – 2 core

Part No.	No. cores	Conductor or cross section area(mm2)	Cable or cross section area(mm2)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
2C0.75YY	2	0.75	27.32	5.9	50	26.0
2C1.0YY	2	1.0	30.17	6.2	55	19.5
2C1.5YY	2	1.5	36.29	6.8	80	13.3
2C2.5YY	2	2.5	55.38	8.4	135	7.98
2C4.0YY	2	4.0	84.90	10.4	197	4.95
2C6.0YY	2	6.0	113.04	12.0	225	3.30
2C10YY	2	10.0	171.94	14.8	460	1.91

Size and Dimensions- 3 core

Part No.	No. cores	Conductor or cross section area(mm2)	Cable or cross section area(mm2)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
3C0.75YY	3	0.75	30.17	6.2	60	26.0
3C1.0YY	3	1.0	33.16	6.5	70	19.5
3C1.5YY	3	1.5	40.69	7.2	95	13.3
3C2.5YY	3	2.5	62.17	8.9	165	7.98
3C4.0YY	3	4.0	98.47	11.2	250	4.95
3C6.0YY	3	6.0	128.61	12.8	305	3.30
3C10YY	3	10.0	195.96	15.8	590	1.91



Part No.	No. cores	Conductor or cross section area(mm2)	Cable or cross section area(mm2)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
5C0.75YY	5	0.75	42.98	7.4	88.5	26.0
5C1.0YY	5	1.0	46.54	7.7	100	19.5
5C1.5YY	5	1.5	63.58	9.0	150	13.3
5C2.5YY	5	2.5	91.56	10.8	255	7.98
5C4.0YY	5	4.0	147.33	13.7	355	4.95
5C6.0YY	5	6.0	191.03	15.6	470	3.30
5C10YY	5	10.0	298.09	19.5	865	1.91
