Aston Cable’s Premium Fire Resistance Cable–2core 4core 1.5mm 2.5mm Fire Alarm Cable
· Product Details
Place of Origin: | China |
Brand Name: | ASTON or OEM |
Certification: | SGS CE ROHS ISO9001 |
Coaxial Cable Daily Output: | 200KM |
· Payment & Shipping
· Short Description

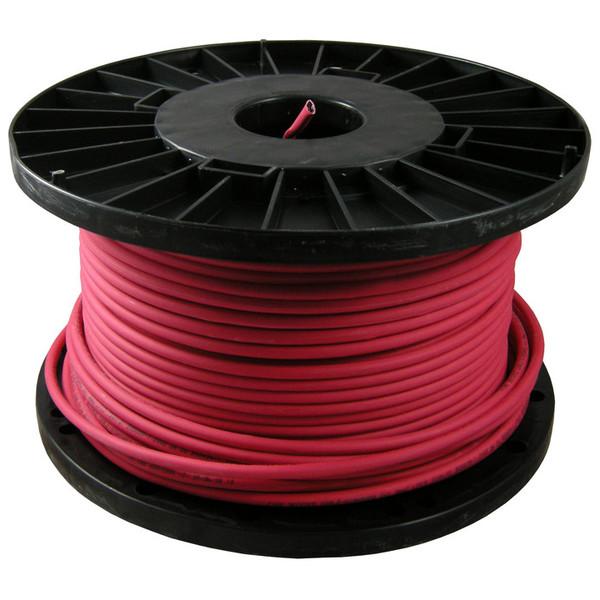

- 100M Wooden drum Package Fire Alarm Cable Solid Copper Wire 1.0mm2/1.5mm2/2.5mm2 2 Conductor shield or unshielded FPLP These cable are used for Fire Protective Signaling Circuits, Smoke detectors, Strobes/Sirens, Pull stations, Voice communications, Burglar alarms, Audio, control, initiating and notification circuits, Microprocessor/Addressable Controlled Systems.
Conductor: Solid Bare Copper
Number of Conductors: 2
Insulation: Plenum Polyolefin.
Conductor Color Code: 1. Black 2. Red
Shield: Aluminum Foil
- MOQ:50KM
· Specification
Product Name: | Fire Alarm cable | Jackets: | PVC, LSZH, PE |
Color: | Red | Conductor: | OFC Copper |
Usage: | Wiring burglar & Security alarm | Logo: | OEM |
Industrial Use: | Fire Security cable | Origin: | Hangzhou Zhejiang |
· Quick detail
Conductor: Bare Copper Solid or Stranded Flexible section in 1.0 Sq.mm/1.5 Sq.mm/2.5 Sq.mm
Core: 2 core or 4 core
Insulation: Fire resistant PVC (Polyvinyl Chloride) Flame
Retardant meet the requirement of IEC.
Outer Jacket: PVC, PE or LSZH
Flame Retardant meet the requirement of IEC.
Shielding: Aluminum/Polyester, Foil 110% Coverage
Drain Wire: Bare Copper Solid or Stranded
· Description
There are many different types of cables produced for different usage areas and purposes. Cables made using fire resistant materials are one of them. Due to these features, they can continue to carry out the task of carrying the current in the cables during a fire for a certain period.
Cables produced by using fire resistant materials; especially in buildings where people are concentrated and where panic may occur in case of any fire, and in high-rise buildings, shopping malls, schools, hotels, hospitals, public places such as theaters and movie theaters, factories, data processing centers, airports, mines, subways and used in highway tunnels.
Non-flammable cable ducts, which provide the necessary dialectic properties and are resistant to fire, should be used; It should be preferred that the pipes and their connection elements be halogen-free.
Fire resistant cables have the feature of reducing smoke density and gas emissions. They also reduce the heat release by preventing the spread of the flame.
Fire resistant cables also have the distinction of being the most important component of any alarm circuit. Fire alarm cable models can be defined as cables for signal and data transmission used in fixed installations inside buildings. They are mainly preferred to be used in fire alarm, intercom, and security systems. Shielded cables, on the other hand, can provide continuity in signal quality thanks to their protection from external electrical interference.
Emergency safety circuits that must work to respond to the fire quickly and incidentally in the event of a possible fire.
Fire warning and alarm systems,
Positive pressurization fans,
Fire escape stairs,
Patient and firefighter elevators,
Smoke and heat fans,
Cables feeding fire pumps,
Fire water systems,
Announcement systems,
They are fire safety cables that have the feature of carrying energy and signal for a certain period, such as emergency lighting systems.
· Product Display
