Aston Cable, one of the top rg59 cable manufacturers, takes great pride in introducing our top-tier RG59 Coaxial Cable - a high-performance solution for high-definition video surveillance applications. Specially designed with a 20AWG center conductor and 18/2 CCTV stranded copper power cable, this offers a one cable solution, ideal for composite video, RGBHV video, component video, and digital surveillance camera systems. It is also compatible with HD, 1080P, 5MP surveillance camera systems, or 4K Monitor or DVR with coaxial output. As a leading coaxial cable factory, we have crafted our RG59 Coaxial Cable to operate over a frequency range of up to 3 GHz, making it suitable for use in applications such as CCTV, satellite TV, and video surveillance. The outer jacket made of polyethylene provides protection against physical damage and moisture. The RG59 Coaxial Cable from Aston Cable is compatible with standard BNC connector and comes with a 95% or more aluminum braided shield, offering excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI). With a characteristic impedance of 75 ohms, this cable ensures clear and interference-free video transmission. Aston Cable, your trusted rg59 factory, offers this cable in various options for jackets and colors, and packages like coil reel, plastic drum, wooden drum, color boxes, and carton boxes. MOQ is 30KM. With Aston Cable’s RG59 Coaxial CCTV Cable, you can expect high-quality video signals for all your surveillance needs. Trust Aston Cable - your reliable wholesale coaxial cable supplier.

· Product Details

Place of Origin:	China
Brand Name:	ASTON or OEM
Certification:	SGS CE ROHS ISO9001
Coaxial Cable Daily Output:	200KM



· Payment & Shipping

· Short Description

- 1000 Ft. RG59 COPPER (100% bare copper) 20AWG Center Conductor+18/2 CCTV Stranded copper Black/Red Power Cable. One Cable Solution

95% coverage braid Shield. RG59 Siamese combo Cable

Ideal for composite video, RGBHV video, component video, and even digital, HD, 1080P, 5MP surveillance camera systems, or 4K Monitor or DVR with coaxial output.

Compatible with standard BNC connector

- MOQ:30KM

---

· Specification





· Quick detail

Type: RG59 with power cable

Weight: 5.4KG/100m

Conductor: 0.81 Copper

Dielectric: 3.7FPE

Jackets: PVC for indoor/ Black PE for outdoor

Color:  Customized

Packages: Coil reel, plastic drum, wooden drum, color boxes, carton boxes



· Description

Operating frequency range: Our RG59/U cable is designed to operate over a frequency range of up to 3 GHz, making it suitable for use in applications such as CCTV, satellite TV, and video surveillance.

Jacket material: The outer jacket of our RG59/U cable is made of polyethylene, which provides protection against physical damage and moisture.

Shielding: Our RG59/U cable has a braided shield made of aluminum with a coverage of 95% or more, which provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI).

Impedance: The characteristic impedance of our RG59/U cable is 75 ohms.

Shielding: our RG59/U cable has a braided shield made of aluminum with a coverage of 95% or more, which provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI).

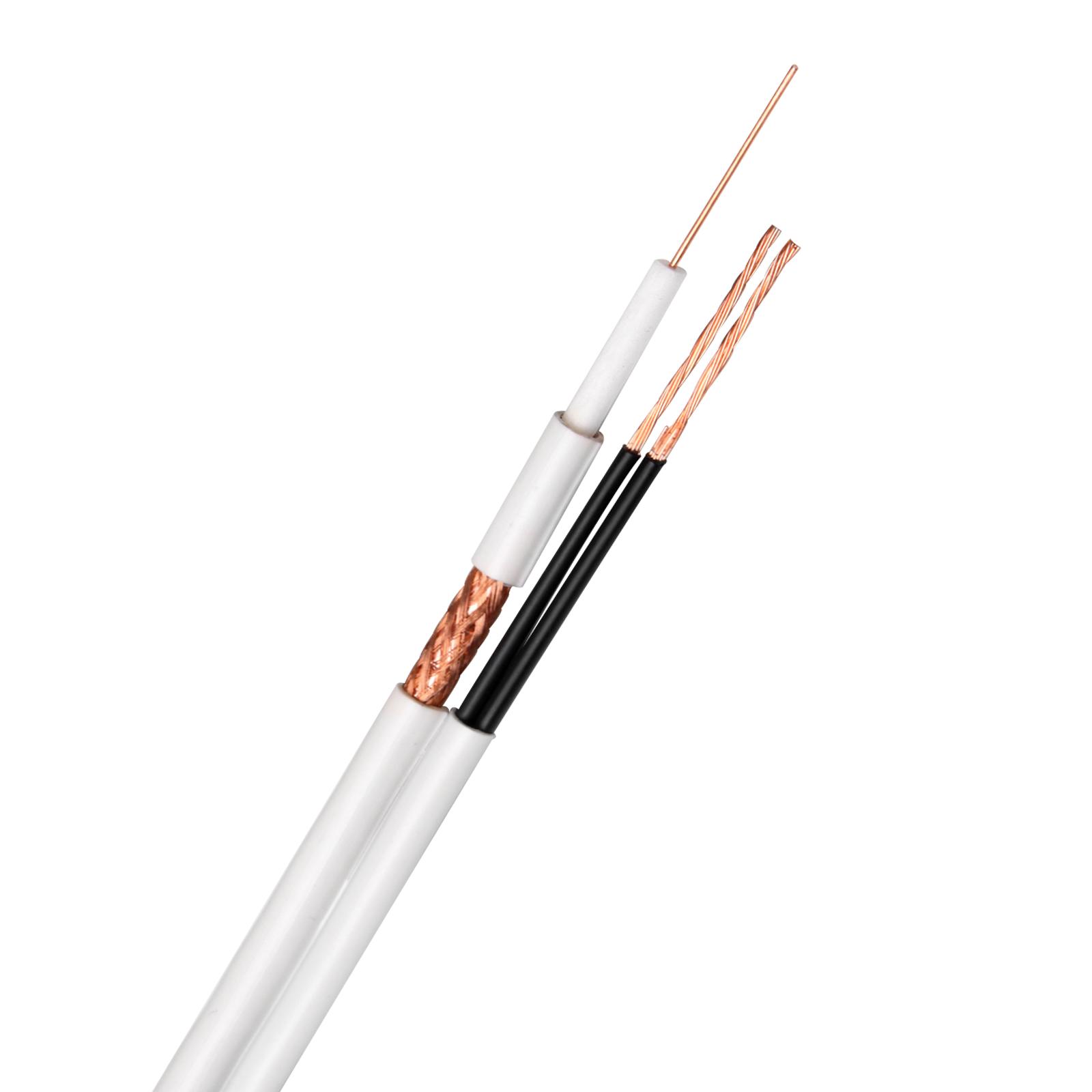

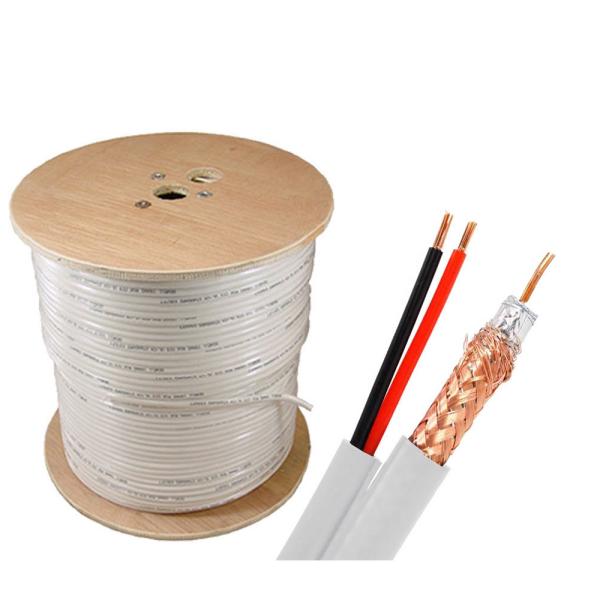

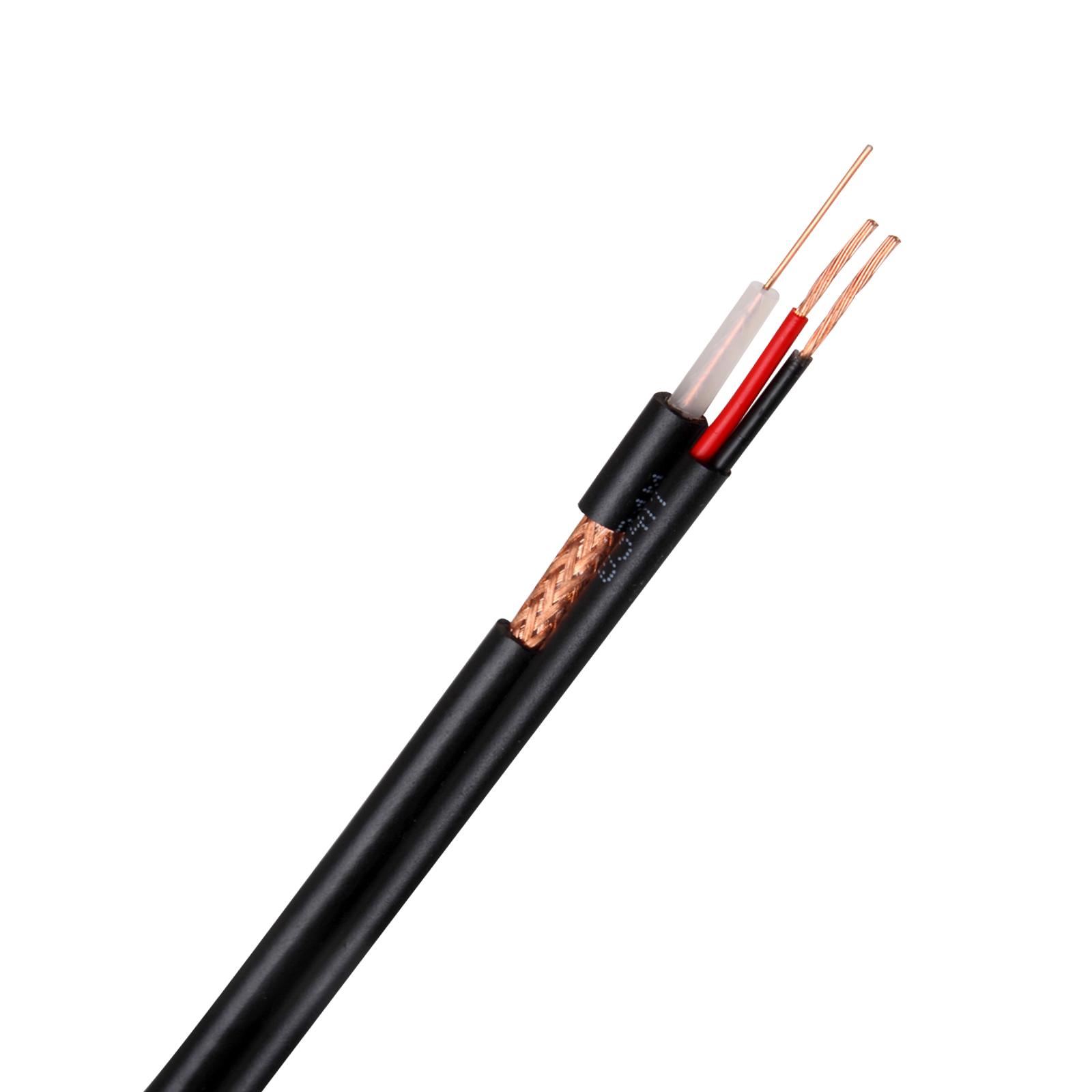

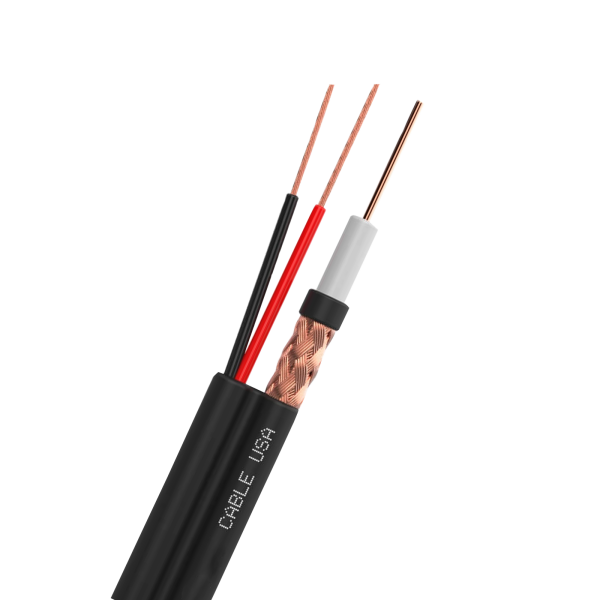

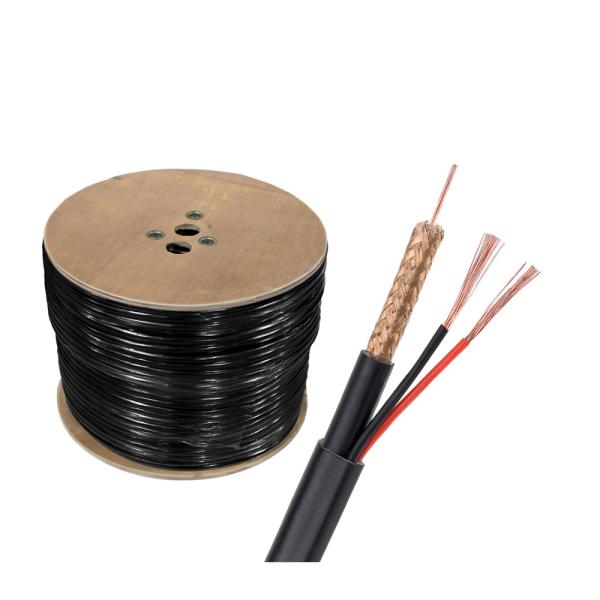

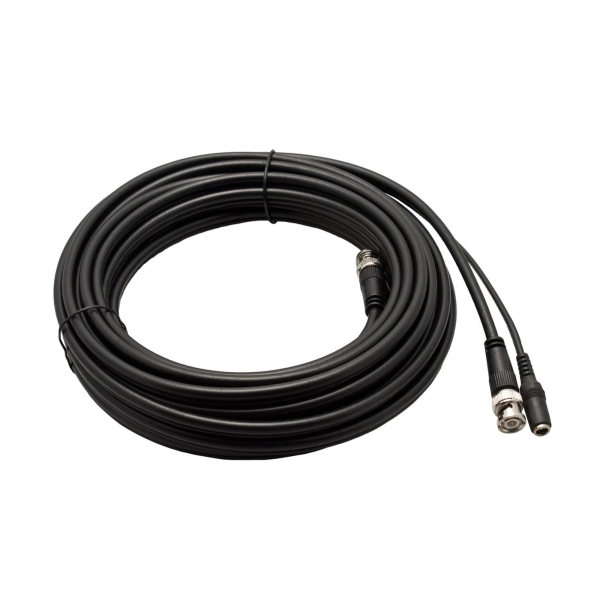

· Product Display
